OEM Streamer Modules
Streamplay module
#All-Audio-Devices
Volumio StreamPlay is a cost-effective ready-to-embed system-on-module that empowers manufacturers to integrate cutting-edge audiophile streaming capabilities into their products.
This version has been designed to be a pin-to-pin replacement module for Streamplay first gen module ensuring fast time to market and low integration effort.
It’s powered by the award winning Volumio OS, providing end users with the most advanced streaming engine on the market.
Volumio StreamPlay key benefits:
- StreamPlay is designed to integrate flawlessly with your main board, ensuring fast time to market and low integration effort.
- StreamPlay is compatible with major streaming services and protocols, and features a WFA-certified Wi-Fi chipset, as required for AirPlay 2 certification.
Evaluation & Development kit
Time-to-market
The StreamPlay Evaluation & Development Kit has been designed to enable the full Volumio experience on the StreamPlay module, while significantly reducing development costs and accelerating time-to-market.
Explore & develop
It provides a ready-to-use platform to design and prototype your own audio product, explore Volumio’s advanced streaming features, and develop custom functionality through its extensive APIs and plugin system. This allows OEMs to efficiently create differentiated, branded audio solutions with their own unique signature.
The board features GPIO pins for seamless expansion and customization. Add peripherals, sensors, or interfaces to suit your specific project requirements.
Open Hardware Design
As a Volumio licensee, you gain free access to the complete designs of both the module and the eval/dev kit.

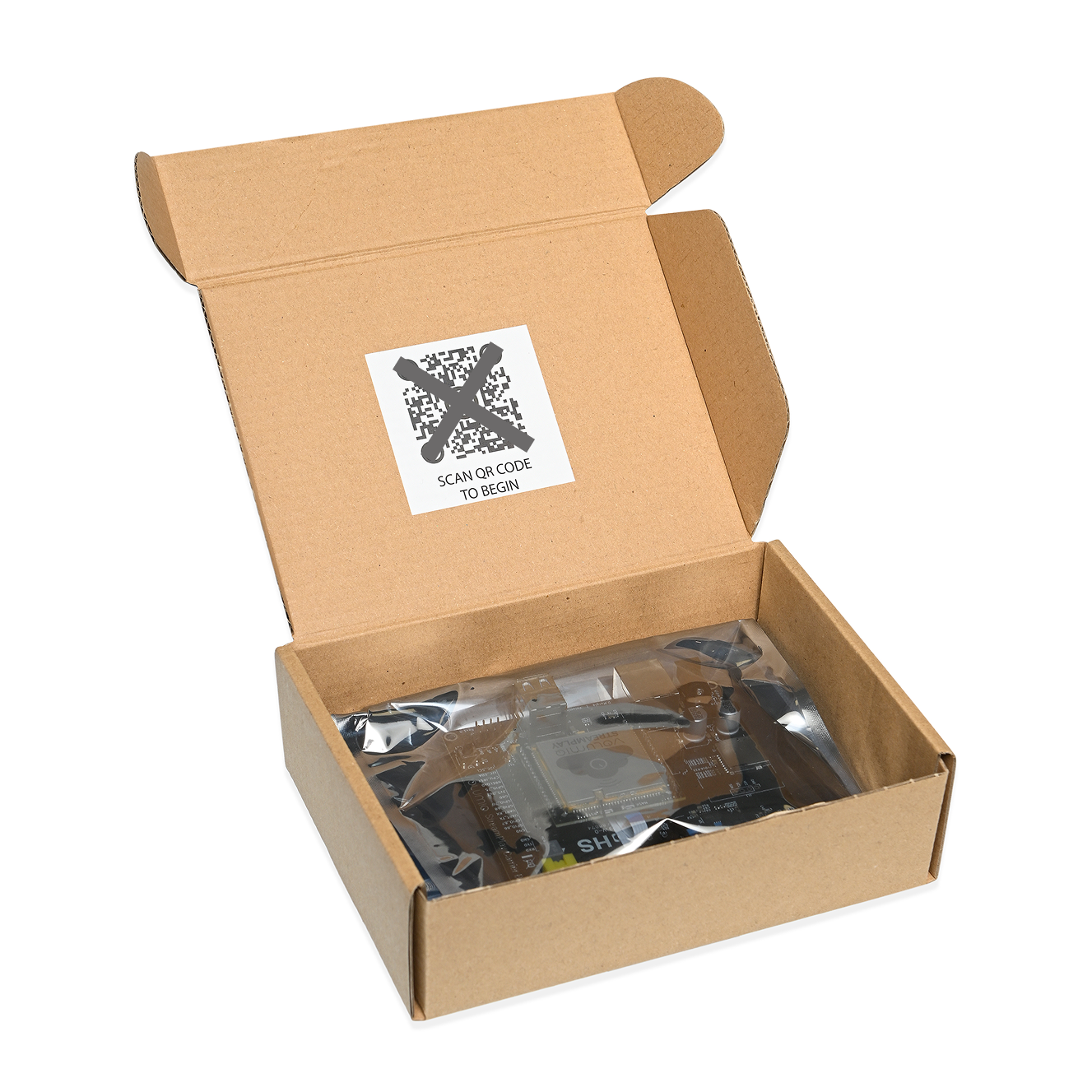

The evaluation & development kit includes:
- Streamplay carrier board
- Streamplay module
- Volumio OS or Connect OS license for one year and its updates & upgrades
- Documentation & Support
Hardware & I\Os
-
Broadcom BCM2837, Quad-core Arm Cortex-A53 64-bit CPU @ 1 GHz
-
RAM 512MB LPDDR2
-
EMMC 8GB onboard storage
-
Support for additional SD-card external storage (variants A & D)
-
Ethernet 10/100M (variants A, C, D, F & G)
-
CYW4373E WiFi 2.4/5.0GHz 802.11 a/b/g/n/ac, Bluetooth 5.2 (variants A, B & C )
-
CYW43439 WiFi 2.4GHz 802.11 b/g/n, Bluetooth 5.0 and BLE (variants D, E & F )
-
External Antenna connector on Wi-Fi/BT module (except for variant G)
-
Digital audio input and output via I2S interface, configurable in master or slave mode, supporting sample rates up to 384 kHz with 32-bit audio resolution.
-
GPIO, UART, I2C, SPI and USB2.0 interfaces
Software
- Volumio Premium OS full license or Volumio Connect OS + mobile app
- Over The Air updates during one year.
- The kit includes APIs access & support.

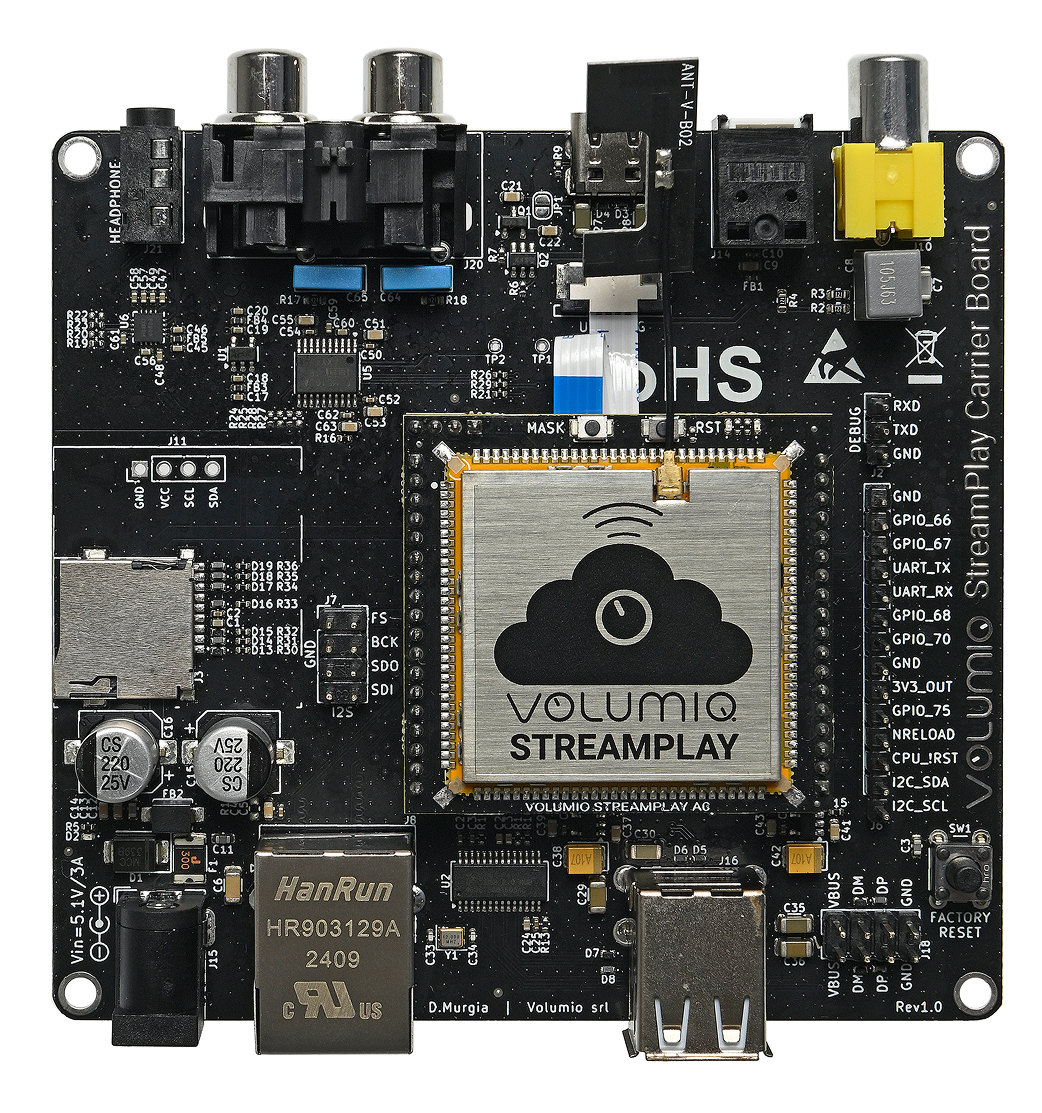

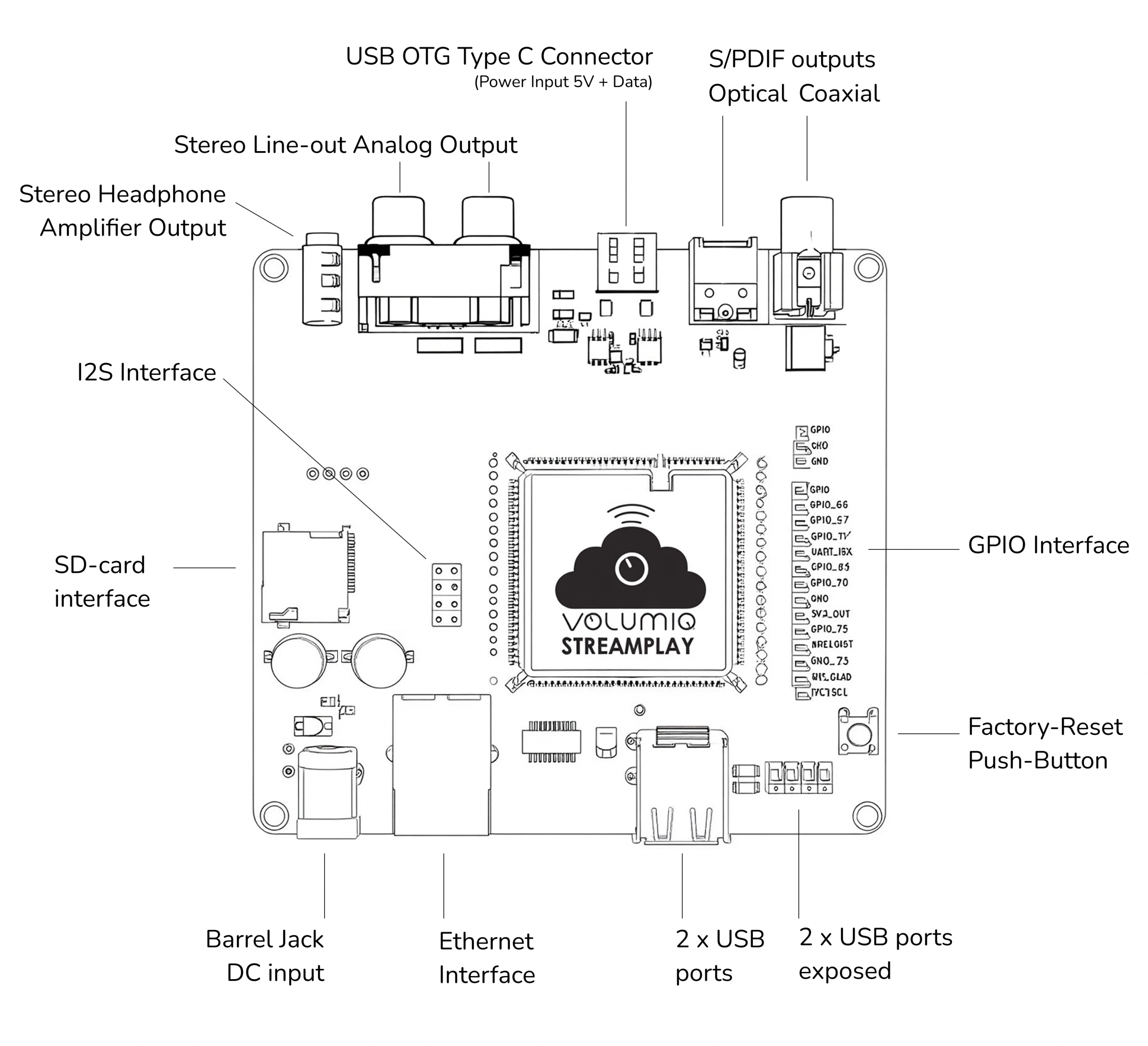

Evaluation & development platform for Streamplay C0 modules
- DAC PCM5100A, up to 192kHz/24bit, 2Vrms
- Sockets for Streamplay modules, C0 & its variants
- Barrel-jack connector for 5.1 V DC input
- Stereo unbalanced analog output on RCA connectors
- Headphone amplifier PAM8908
- Stereo headphone output on 3.5mm jack connector
- Digital S/PDIF Coaxial output on RCA connector, up to 192kHz/24bit
- Digital S/PDIF Coaxial output on TOSLINK connector, up to 192kHz/24bit
- 10/100M Ethernet interface
- SD-card interface for external storage
- 2 x USB 2.0 port on Type-A connector
- 2 x USB 2.0 port exposed on 2.54mm pitch pin-header
- 1 x USB 2.0 on Type-C connector (to program module’s EMMC)
- I2S interface exposed on 2.54mm pitch pin-header
- I2C interface exposed on 2.54mm pitch pin-header
- UART interface exposed on 2.54mm pitch pin-header
- 6 x GPIO exposed on 2.54mm pitch pin-header
- 1 x push-button (factory-reset or custom functionality)
Options
- 1 x 0.96″ OLED display
- Wifi 2.4 & 5Ghz module for testing and design purpose
